VP6000-V/5200-VSolder paste inspection machine

In-line type SPI with high speed, high precision and simple operation that was largely improved from former one.

Speed & Precision

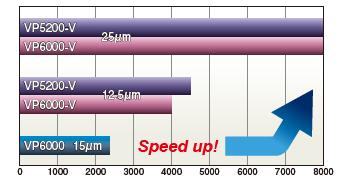

The inspection speed is much faster to meet requirements of high speed of production lines.

By making a measurement area wide and improving measurement algorithm, CKD achieved 8,000mm²/sec (standard) speed in VP6000-V and VP5200-V. In addition, CKD corresponded with a popular high resolution measurement of the VP5200 series. With the speed that is up to 2 times faster than the former one, VP6000-V and VP5200-V will contribute to speed-up of production line.

	*12.5μm is a high resolution measurement of 25μm.	Speed [mm²/sec]

High accuracy and repeatability support inspection of fine pads

High repetition precision
Repeatability of height inspection: within 1um at 3 σ(height standard jig) Repeatability of volume inspection: within 2% at 3 σ(CKD's sample PCB)

QFP solder shape(Microscope)	QFP solder shape(Shape display VP6000-V)
Minute pad inspection VP6000-V and VP5200-V are able to inspect PCB in the resolution that is most suitable for every part.
Ex. 0603 Pad inspection

Stardard Inspection(25μm)	High Resolution Inspection(12.5μm)
	*image picture

Simple inspection program creation procedure

Data about the printed circuit board(PCB) in various formats can be used for the inspection program.
Even if no PCB data is available, the printed PCB is scanned to create inspection data automatically.
The reference face setting and light amount adjustment are automated, so that program creation is made offline in a short time.
Because libraries created with earlier models can be used, accumulated assets do not become waste.

Simple operation - complete touch panel operation method

All operation switches are displayed in a full touch panel.
Normal operation can be done by one-touch operation.
Each menu opens with tag selection. Menu switching is simple.

Standard specifications

	VP6000M-V	VP6000L-V	VP5200M-V	VP5200L-V
Inspection method	Phase shift method
Projection	Twin Projector		Single Projector
PCB size	(M)50mm×50mm ∼ 330mm×250mm (L)50mm×50mm ∼ 510mm×460mm
PCB thickness	0.3 ∼ 5.0mm
Resolution	25μm(12.5μm), 20μm(10μm), 15μm(7.5μm) (at the time of a high resolution measurement)
Accuracy Volume (3σ)*1	With in 2%		With in 3%
Speed(mm²/sec)	(25μm) 8,000 (20μm) 4,500 (15μm) 2,600
Warp in PCB	±5mm
Inspection items	Average Height, Volume, Projection, Dimness, Area, No Solder, Position Deviation and Bridge
Dimension	(M)724×870×1,450mm (L)904×1,080×1,450mm
PCB flow direction	From lefy to right (selected during determination of specifications)
PCB positioning datum	Front or Rear side of machine (selected during determination of specifications)
Fluid	Not required
Power supply and capacity	Single-phase 200 to 230VAC　50/60Hz, Max 1KVA
Weight	(M) 500kg (L) 560kg
Environmental considertation	RoHS
option	Loding/Unloading Conveyor, Barcode Read Function, Data Station

* Use CKD sample board

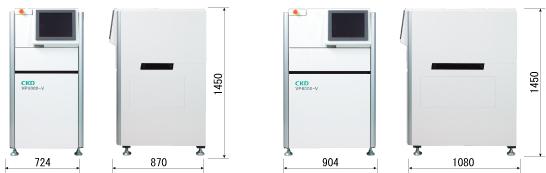

Appearance
